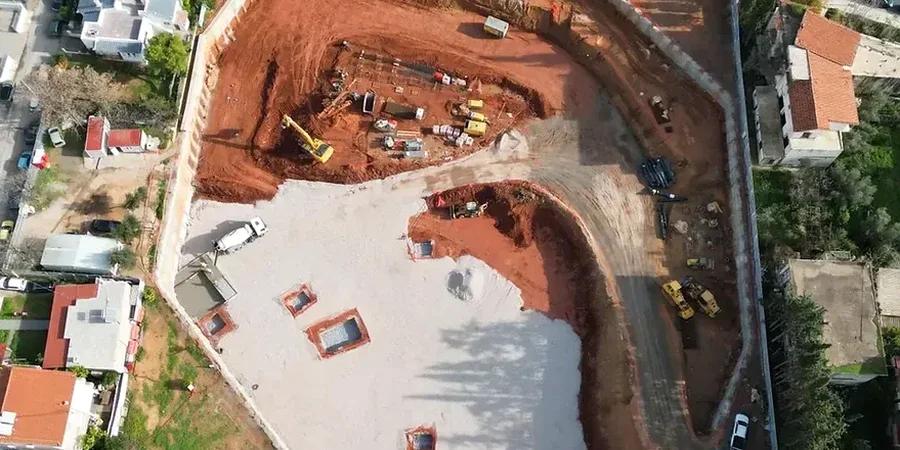

Geotechnical Design of Deep Excavations in Gloucester

The design fee for a deep excavation in Gloucester typically falls between £1,510 and £5,710, depending on the excavation depth, complexity of the retaining system, and number of construction stages requiring Category 2 or 3 checking. A straightforward single-level basement of 4 metres depth with a sheet pile wall sits at the lower end, while a multi-level basement exceeding 10 metres depth with secant pile walls, groundwater modelling, and an instrumentation monitoring plan moves toward the upper end of the range.

Eurocode 7 (BS EN 1997-1) requires that geotechnical designs be based on limit state principles, with partial factors applied to actions (DA1 Combination 1 or 2 in the UK National Annex), soil parameters, and resistances. For deep excavations, Design Approach 1 is typically used, requiring two separate calculations: Combination 1 applies factors to actions for structural stability, while Combination 2 factors ground strength for geotechnical stability. The design must demonstrate adequate safety against ultimate limit states (ULS) such as basal heave, overall instability, and hydraulic failure, as well as serviceability limit states (SLS) including wall deflection and ground settlement affecting adjacent structures.

A BS 5930-compliant investigation must provide continuous sampling through the full depth of the proposed excavation plus at least 1.5 times the excavation depth below formation to assess basal stability. As a minimum, the design requires: undrained and effective stress triaxial tests on the cohesive strata; particle size distribution and permeability tests on the granular layers; in-situ piezometer readings over at least one full hydrological cycle; and Standard Penetration Test (SPT) N-values logged at 1-metre intervals. Where the excavation approaches the limestone bedrock, unconfined compressive strength tests on intact core are also essential.

The Severn Vale’s shallow aquifer means groundwater control is integral to the temporary works design, not a separate afterthought. The design includes a hydrogeological model calibrated to site-specific pumping test data, with well arrays sized to lower the phreatic surface at least 0.5 metres below formation level. A contingency plan defines trigger piezometric levels that, if exceeded, activate standby pumps and recharge wells to protect neighbouring structures. The retaining wall is also checked for the unbalanced water pressure case, assuming a sudden loss of dewatering function, to ensure structural robustness under emergency conditions.
